EGreat R180 / 180 Pro
EGreat R180 & R180 Pro Full-HD 1080P Media Player
Key Features:
CPU Processor: RTD1185DD 500MHz MIPS, DDR2 SDRAM:256MB, NAND FLASH: 256MB
BD Playback*:
Connect with BD ROM to playback TBD, simple BD navigation, multi-subtitle and multi-audio
track, chapter selection are supported. At same time, BD25, BD50, MINI BD, BD-9,
BD ISO can be play smoothly. (Most file extension is .TS, .MKV, .AVI etc)
*No support
for Original BD Disc!
DVD playback: Connect with DVD ROM to play DVD with DVD navigation.
D5/D9/D10/D18 are supported also.
Support BDMV(BD1.0) full navigation, which has
been realized in high-end BD player only,user can enjoy BD movies freely.
Dolby, DTS
Dual Decode, HD audio Pass Through: Unit can pass through LPCM, Dolby Digital Plus,
Dolby True HD, DTS-HD HR, DTS-HD MA through HDMI, optical, coaxial; Connect with
AVR, it will provide Crystal-clear digital surround sound.
Support >99% video file
formats: RM, RMVB, M1V, M2V, M4V, M2P, MPG, TS, TP, TRP, M2T, M2TS, MTS, VOB, AVI,
ASF, WMV, MKV, MOV, MP4, RMP4, IFO, DVD-ISO, BD-ISO; After connect with DVD ROM or
BD ROM, MINI BD, BD-9, BD25, RBD, D5, D9, DVD, CD can be supported.
Subtitle format:
Multi-audio track, multi-subtitle switch smoothly; subtitle color, outline color,
subtitle size, display location, time adjust etc can be supported.
FLAC Lossless
Compression Music Playback: Support FLAC music,and OGG, AAC, M4A, WAV, WMA, MP1,
MP2, MP3, MPA are supported.
Mobile rack for 3.5" SATA HDD: Easily install and remove
3.5” SATA HDD (up to 3TB) by mobile rack
HDMI v1.3 Output: up to 1080P
YouTube Online:
User can access Youtube smoothly to get various online media files
BT Download Tool:
Support over 7x24Hour download smoothly, and ultra-low power, ultra-quiet provide
good experience for users.
SMP, NFS Service: Under LAN, share data with Windows,
Linux computer; supported searching SMB,NFS servers automatically and added manually,
find corresponding resource quickly
UPnP Protocol Supported: Used as UPnP client,
detective and connect with NAS or computer which has UPnP function automatically;
Used as UPnP server, can be access by other client device
DLNA Supported
TS Files
Playback without Interval: Support TS,M2TS files playback without interval
WIFI Support:
Support Specified USB WIFI dongle (Optional). (180 Pro comes with integrated wifi)
Bookmark: Save movie playback location and audio track, subtitle setting parameter,
user can continue to enjoy their movie freely.
File Management: Support file copy,
delete.
Internet Media Services: Youtube ,Youku, Picasa, Flickr ,RSS News, Weather,
iRadio etc.
Other features: Support online FW upgrade; User can change wallpaper
freely; Support Cloud Storage and more.
Future firmware upgrade can support: HTML
5.0 webpage browser, Adobe Flash 6/7/8, Remote controlled by Iphone and more.
Specifications:
Hardware Parameter:
CPU: Realtek RTD 1185DD @ 500Mhz MIPS
- DDR2 SDRAM: 256MB
- NAND FLASH: 256MB
Video Output:
- HDMI1.3 output,resolutions :480P, 576P, 720P@50Hz, 720P@60Hz, 1080I@50Hz, 1080I@60Hz, 1080P@50Hz, 1080P@60Hz
- Component Y/Pb/Pr 480P, 576P, 720P@50Hz, 720P@60Hz, 1080I@50Hz, 1080I@60Hz, 1080P@50Hz, 1080P@60Hz
- Composite, Resolution, 567i@PAL, 480i@NTSC
Audio Output:
- Stereo Output
- Coaxial Output
USB 2.0 Host:
- USB host, 2 Ports, connect with various USB Devices directly.
USB 2.0 Slave:
- USB slave, 1 Port, Connect with computer for data transfer, up to 480Mb/s
HDD Format:
- FAT32. NTFS (up to 3TB)
Network Connection:
- Network 10/100 Ethernet LAN, support playback via network.
- Support USB WiFi Dongle, 802.11n (optional)
Remote Control:
- 40 Buttons remote control.
- Power on/off control.
File Management:
- Support file copy/move/delete/rename function.
Video format:
- RM / RMVB
- MPEG1/2/4 Elementary (M1V, M2V, M4V)
- MPEG1/2 PS (M2P, MPG)
- MPEG2 Transport Stream (TS, TP, TRP, M2T, M2TS, MTS)
- VOB
- AVI, ASF, WMV
- Matroska (MKV)
- MOV (H.264), MP4, RMP4
- IFO
- BD-ISO, DVD-ISO
- MINI BD,BD-9,BD25, RBD, D5, D9, DVD, CD
VideoCodec:
- MPEG1,VCD1.0/2.0,SVCD(up to 1920*1080@30P/60I or 1280*720@60P)
- HD MPEG2 MP/HL,ISO,IFO,VOB,TS(up to 1920*1080@30P/60I or 1280*720@60P)
- HD MPEG4 SP/ASP,Xvid(up to 1920*1080@30P/60I or 1280*720@60P)
- H.264 BP L3,MP L4.1,HP L4.1 (up to 1920*1080@30P/60I or 1280*720@60P)
- WMV9,VC-1 AP L3(up to 1920*1080@30P/60I or 1280*720@60P)
- DivX3/4/5(up to 1920*1080@30P/60I or 1280*720@60P)
- XVID SD/HD(up to 1920*1080@30P/60I or 1280*720@60P)
- RM/RMVB 8/9/10(up to 1280*720@30P)
Audio Format:
- AAC, M4A
- MPEG audio (MP1, MP2, MP3, MPA)
- WAV
- OGG
- WMA
- APE
- FLAC
Audio Codec:
- MPEG I Layer 1/2/3 (2-CH), MPEG II 1/2 (Multi-Channel)
- LPCM, ADPCM, FLAC, AAC, WAV, OGG
- DTS HD Master Aduio, LBR
- Dolby Digital Plus
- RA1/RA-cook/RA-Lossless
Picture Format:
- JPEG
- BMP
- PNG
- GIF
Sutitle Format:
- MicroDVD [.sub]
- SubRip [.srt]
- Sub Station Alpha [.ssa]
- Sami [.smi]
- idx+sub
- PGS subtitle
Special Function:
- Support playback TS, M2TS without interval.
- Support movie preview/book mark/external subtitle can be adjusted.
- Support slide show/background music/screen saver.
- Parental control.
- BD simple navigation.
- Support time seek function.
OSD Language*:
- Simplified Chinese
- Traditional Chinese
- English
- Spanish
- French
- Russia
- Turkish
- Dutch
- Italian
- French
- German
Sutitle Language*:
- Simplified Chinese
- Traditional Chinese
- Turkish
- Greek
- Hebrew
- Czech
- SE European
- Central European
- Cyrillic
- Western
- UTF8
Power:
- 12V DC, 2A
Package Content:
- EGreat R180 or R180 Pro (HDD not included unless indicated)
- 100~240V Power Supply with US wall plug
- HDMI Cable
- Remote Control
- Quick Installation Manual
Dolby Digital: "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories
*Additional formats & languages available in future firmware releases.

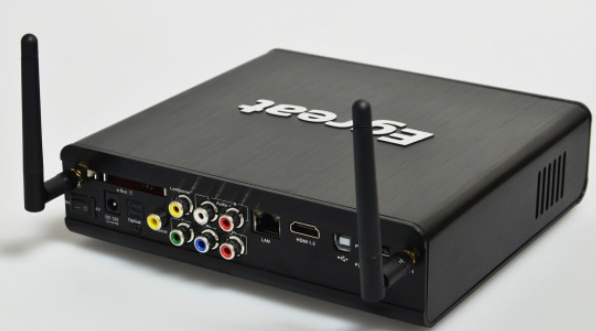

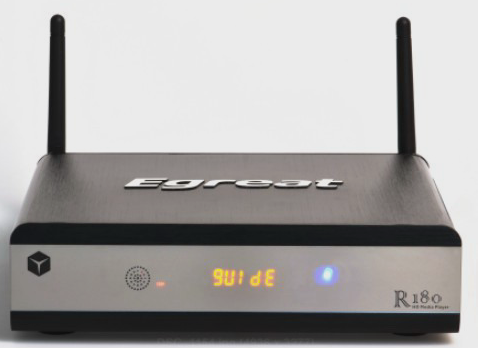

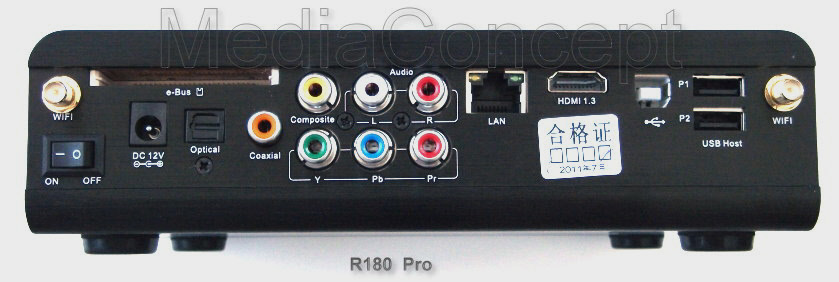

R180 Pro : comes with Dual Wireless Antenna as shown here

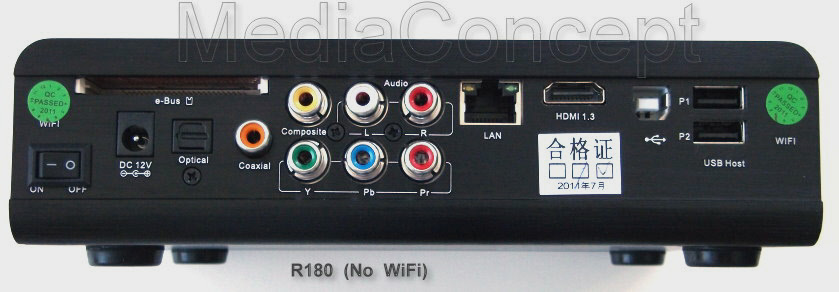

R180 : dose not comes with Wireless Dual Wireless Antenna

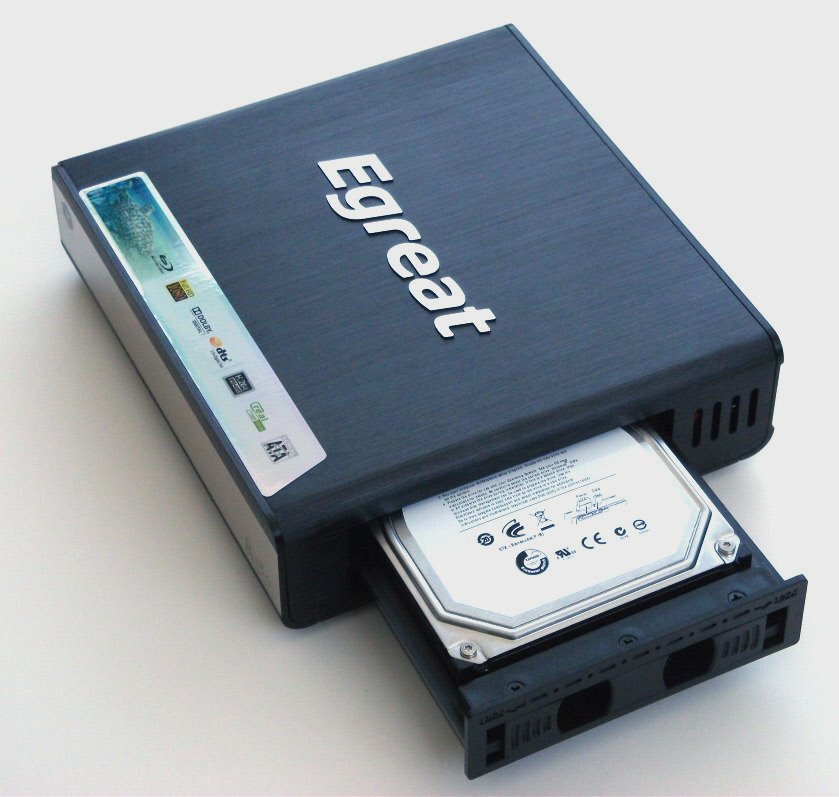

Quick Installation/swap of 3.5” HDD (HDD optional)
