HDX Bone

HDX Bone, the world smallest Full HD Network Media Player that fits in your pocket!





HDX Bone Features



• Low power consumption, effeicient heat dissipation through 100% high quality aluminum casing
• Play almost every video codec format *(please see product specifications)
• Runs on HDX Voir as a HD media Player
• Ultra Portable
• High Speed USB 2.0 O-T-G Connectivity
• HDMI 1.3 interface
• Huge support for all popular high-definition video encoding format and container
• Easy hard drive installation

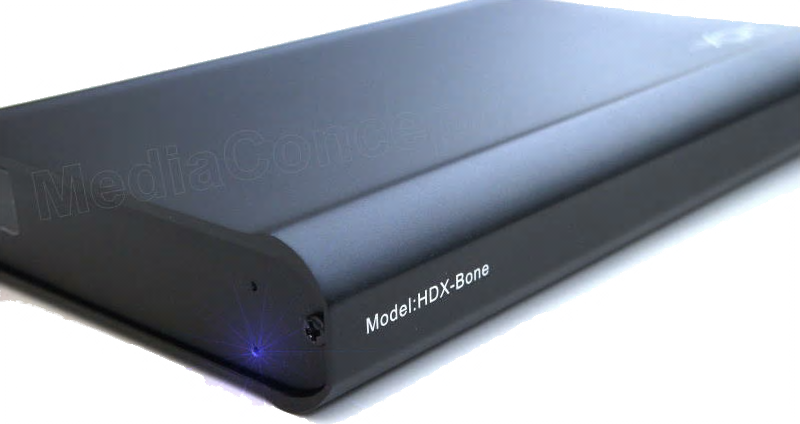

The HDX-Bone is the smallest Media Player anywhere, coming in at only marginally bigger than a 2.5" laptop hard drive.

As a Media Player, the Bone runs the HDX Voir software as used in other HDX players and has wide format support including .mkv, DVD-ISO (no menus), BD-Lite, RMVB, and .m2ts. On the audio side, Dolby Digital and DTS are supported for both passthrough and downmix.

Ultra Portability



Need that extra space at work? Just bring your bone along with you and leave that AC adapter at home. With support for up to 1TB 2.5"HDD, you never worry that it won’t fit your thumb drive. Bring it back home and you can turn it into a media player again.

An internal 2.5" SATA HDD is supported inside the incredibly small case. The HDX-Bone is not just the smallest internal HDD Media Player in the world, but also the smallest full-HD Media Player when you include players without an internal HDD!. The Bone runs cool and silent in its aluminum casing.

Portable FullHD network media player

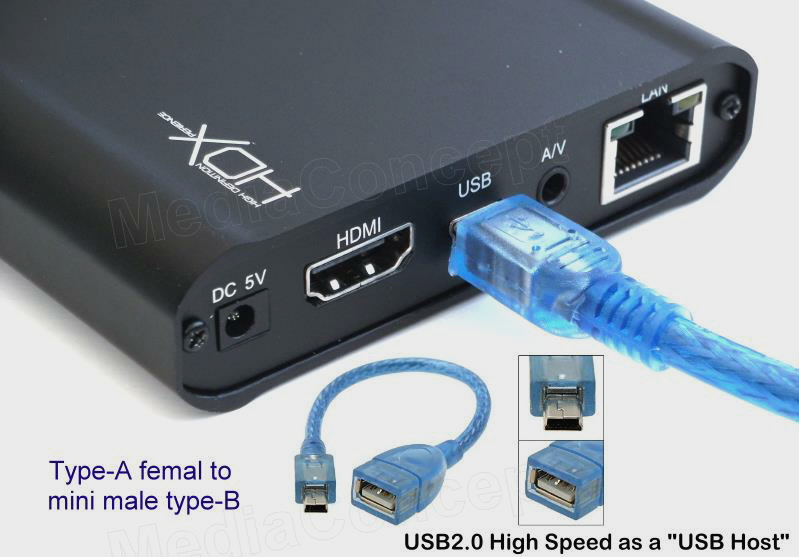

High Speed USB 2.0 O-T-G connectivity
High Speed USB 2.0 - 2.5" laptop hard disk enclosure

Plays virtually all digital contents available today

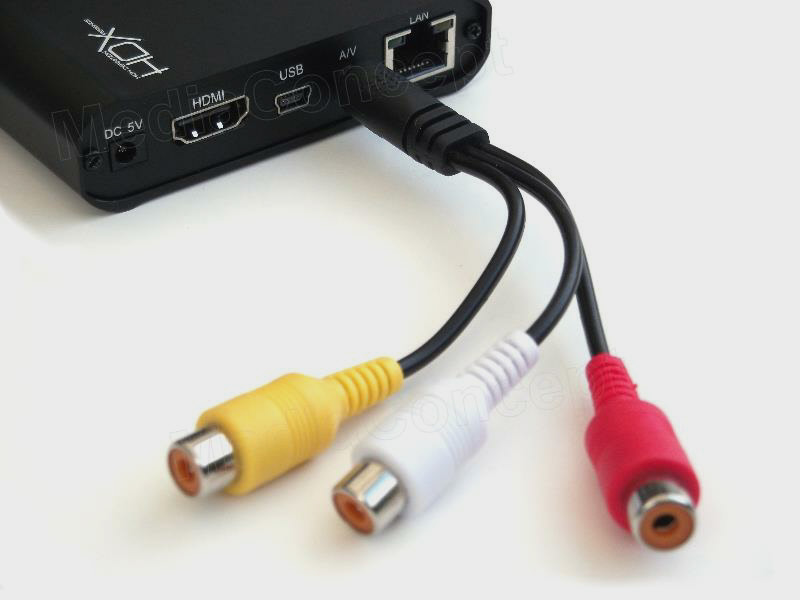

Able to work on your old TV sets with composite inputs

Versatile Usage

Amazed your loved one's today, the HDX bone supports virtually any digital contents that are available today.

HDX BONE HARDWARE SPECIFICATION



Chipset:

Telechips TCC8900 CPU Core

Onboard Video accelerator



Case:

Ultra small footprint easily fit into your pocket.

2mm 100% aluminum for excellent passive cooling

Easy 2.5” hard drive installation

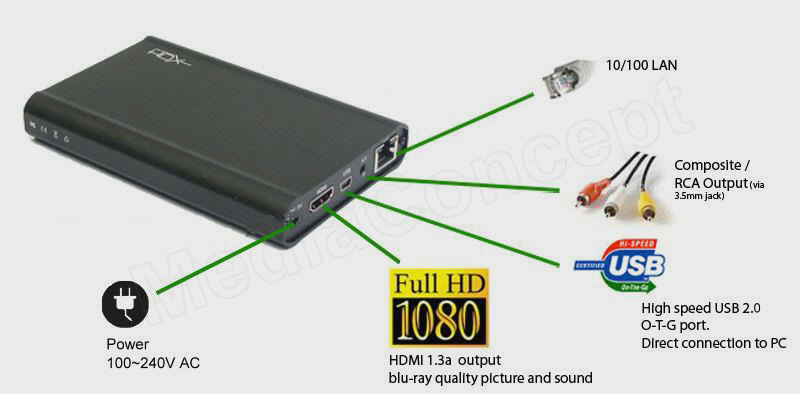

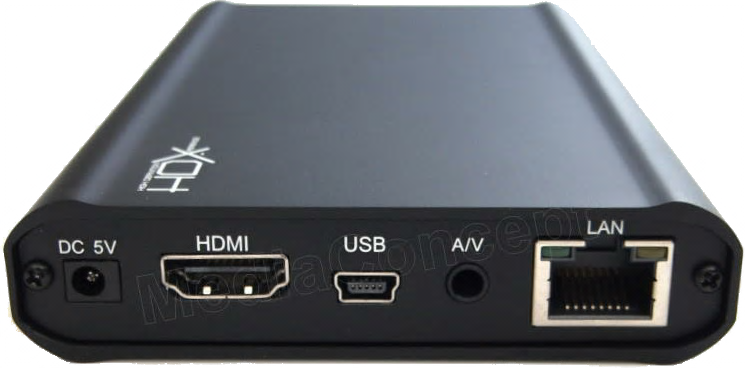

Audio/Video Outputs:

HDMI v1.3a supports deep color and true HD audio enjoyment

Composite Video

Stereo Analog Audio



Interface:

1x SATA (occupied by HDD tray)

USB2.0 High Speed External Interface

USB2.0 High Speed OTG

2.5" SATA HDD tray (portable hard disk enclosure)



Network:

100M LAN adapter

Samba/NFS Client



Power:

Input 100~240V AC, 50~60 Hz,

Output: DC 5V max 2A

0.5 W (no device connected)

Maximum power consumption: 5 W



Footprint:

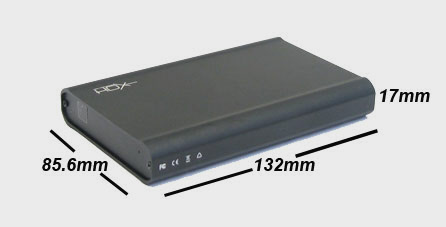

Width x Depth x Height: 132mm x85.6mm x17mm (large 20.9mm)



VIDEO:

MP4, MOV, AVI, DVD (VOB – IFO – ISO), ASF, WMV, MKV, RM, RMVB, TS, DAT, MPG, MPEG-2

HD, AVCD, VC-1



AUDIO:

MPEG-1 Layer 3, WMA, WMA Pro, MPEG-1/2 Layer 1/2, ADPCM, AAC, OGG Vorbis, Dolby Digital

AC3, Dolby Digital Plus, RA, FLAC, APE



PHOTO:

JPEG, BMP, PNG



Subtitles:

PGS, SubRipper, MicrooDVD, SAMI, SubStation Alpha, Advance Substation, DVD Subtitle.

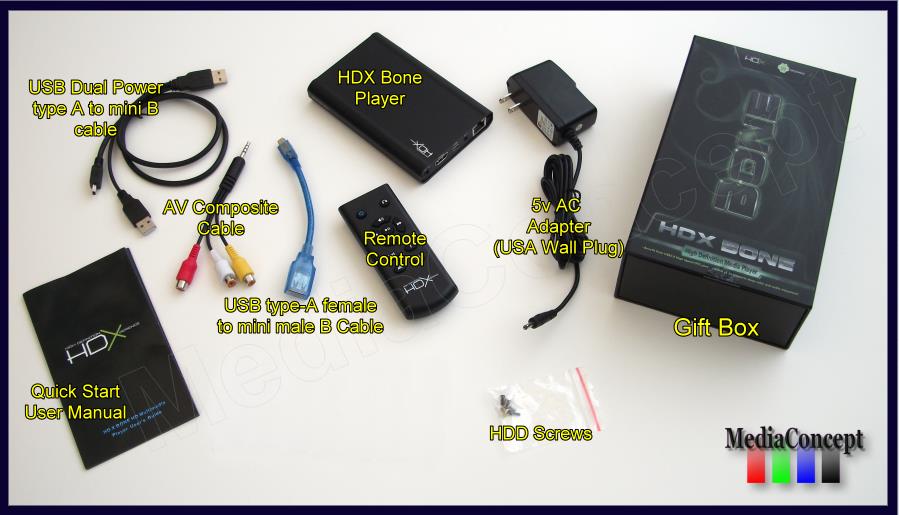

Package content:

· HDX Bone Player in Gift Box (Hard Drive not included)

· 100~240V AC Power Supply with USA Plug

· Remote Control

· USB type-A female to mini male type-B cable

· USB Dual Power type-A to mini type-B cable

· AV Composite Cable

· Quick start manual

· Bag of screws for the HDD
